商品信息
基本参数
- 产地福建
- 品牌
- 产品型号
- 产品操作
- 产品应用范围
- 产品材料等级
- 产品表面处理
- 体积(m²)
- 产品重量(kg)
产品简介：

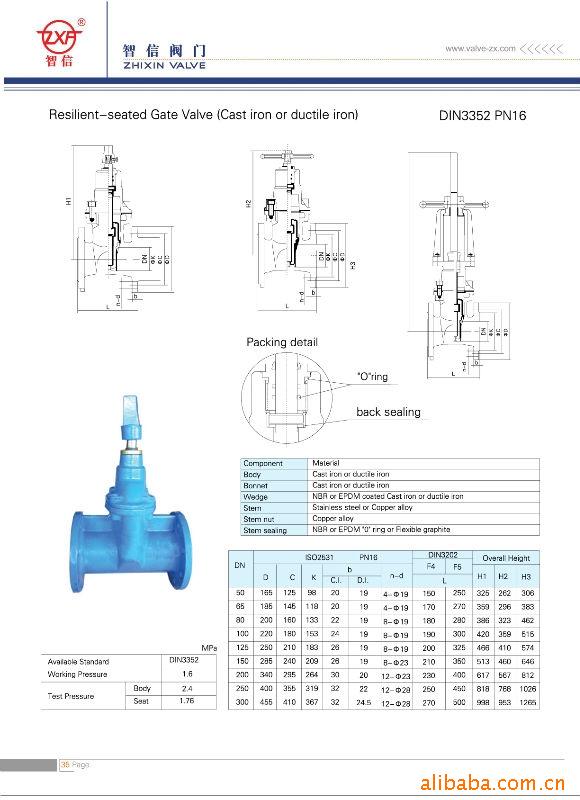

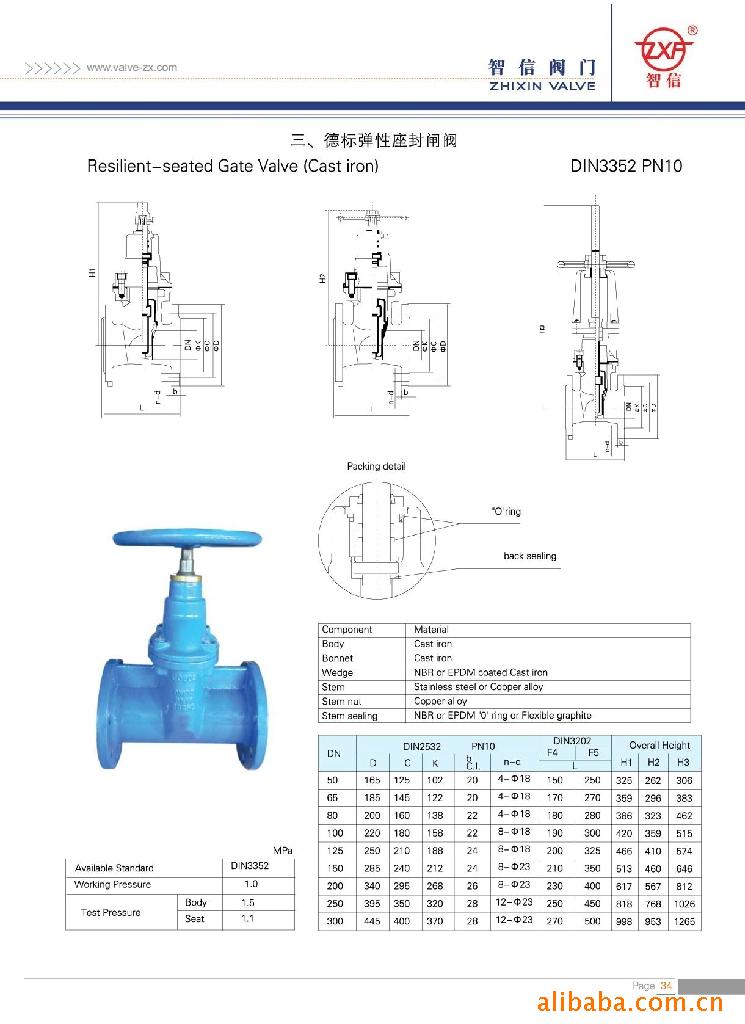

产品详情：德标闸阀，DIN3352standard
概略：
Flat bottom seat ring integral with the body,inside and outside epoxy resin coating,wedge wholly bonded with rubber，three“o”ring sealing,these all insure excellent corrosion protection and reliable sealing capability.Upon request,the gate valves can be actuated by operating lever,hand wheel,electrical actuator and so on。
Unique设计：
Compactdesign:one-piece bonnet,non-rising stem。
Stem nut is separated from wedge,no seizing-up。
Flat bottom seat ring insures no ded space。
“O”ring design for stem back sealing leads to maintenance-free。
Excellentcorrosion保护：
Inside epoxy resin coating or vitreous enamel（在request上），outside epoxy resin coating。
Socket head cap bolts,sealed with glue on the top。
Reliablehealthnature：
Epoxy resin coating complies with the GB/T17219。
Wedgebonded with rubber for the health inspection。
Trimsare made of stainless steel or bronze。
Scopeofapplication：
Potable water supply,industrial fields。
